Nodes are the building blocks of your conversation flow. Each type serves a specific purpose in guiding the conversation from start to finish.

Node Types at a Glance

Node	Purpose	When to Use
Default	Conversation step	Each conversation point where the agent speaks and listens
API Call	External data	Fetch or send data mid-conversation
Transfer Call	Handoff to human	Connect caller to a live agent
End Call	Terminate call	Natural conversation endings
Pre-Call API	Load context	Get data before the call starts
Post-Call API	Save data	Send data after the call ends

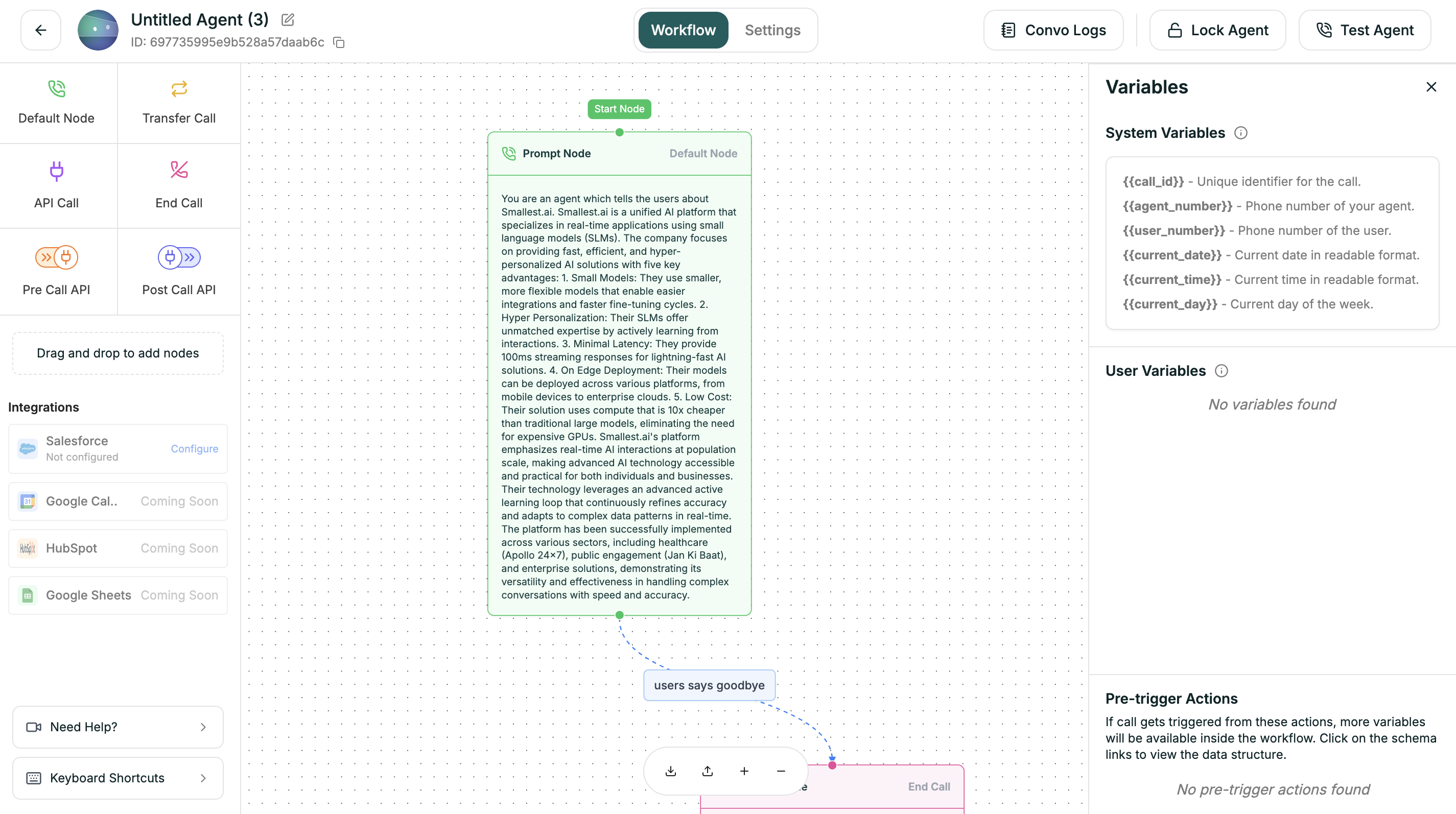

Default Node

The workhorse of your flow. Each Default node represents one step in the conversation where your agent speaks and waits for a response.

Configuration

Click a Default node to open its settings panel.

Field	Description
Name	Identifier shown on the canvas
Prompt	What the agent says at this step
Branches	Output paths based on caller response

Uninterruptible Mode

When enabled, the user cannot interrupt the bot while it is speaking on this node. This ensures the bot completes its message before any user interaction is allowed.

Setting	Behavior
OFF (default)	Caller can interrupt at any time
ON	Bot must finish speaking before caller input is processed

Use Uninterruptible mode for critical messages like legal disclaimers, confirmation summaries, or important instructions that shouldn’t be cut off.

Example Prompts

Greeting

Question

Confirmation

Hi! Thanks for calling Acme Support. My name is Alex.
How can I help you today?

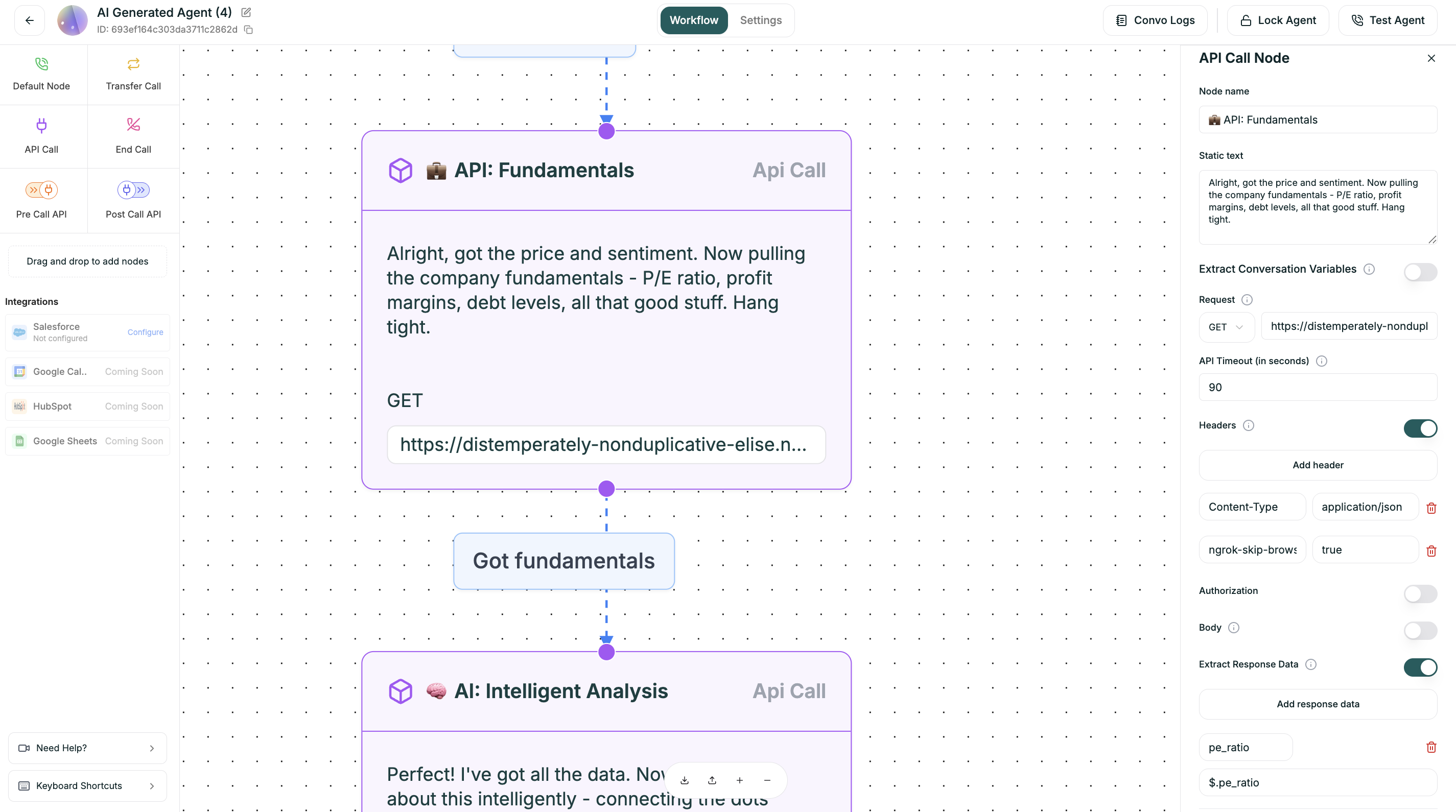

API Call Node

Connect your agent to external systems mid-conversation. Fetch data, book appointments, update records — anything your APIs can do.

Requirements

API Call nodes have connection requirements:

Must have at least one incoming connection
Must have at least one outgoing connection
Must have an endpoint URL configured

Configuration

Click an API Call node to configure the request.

Request

Headers

Body

Extract Response Data

Select the HTTP method and enter the full API endpoint URL you want to call.

Field	Description
Method	HTTP method (GET, POST, PUT, PATCH, DELETE)
URL	Full endpoint URL (e.g., `https://api.example.com/customers`)

Use variables in the URL for dynamic requests:

https://api.example.com/customers/{{caller_phone}}

Branching on Results

After extracting response data, you can branch based on the results:

[API Call: Check Account]
├── Success ({{account_tier}} == "premium") → VIP Flow
├── Success ({{account_tier}} == "basic") → Standard Flow
├── Error → Fallback / Transfer

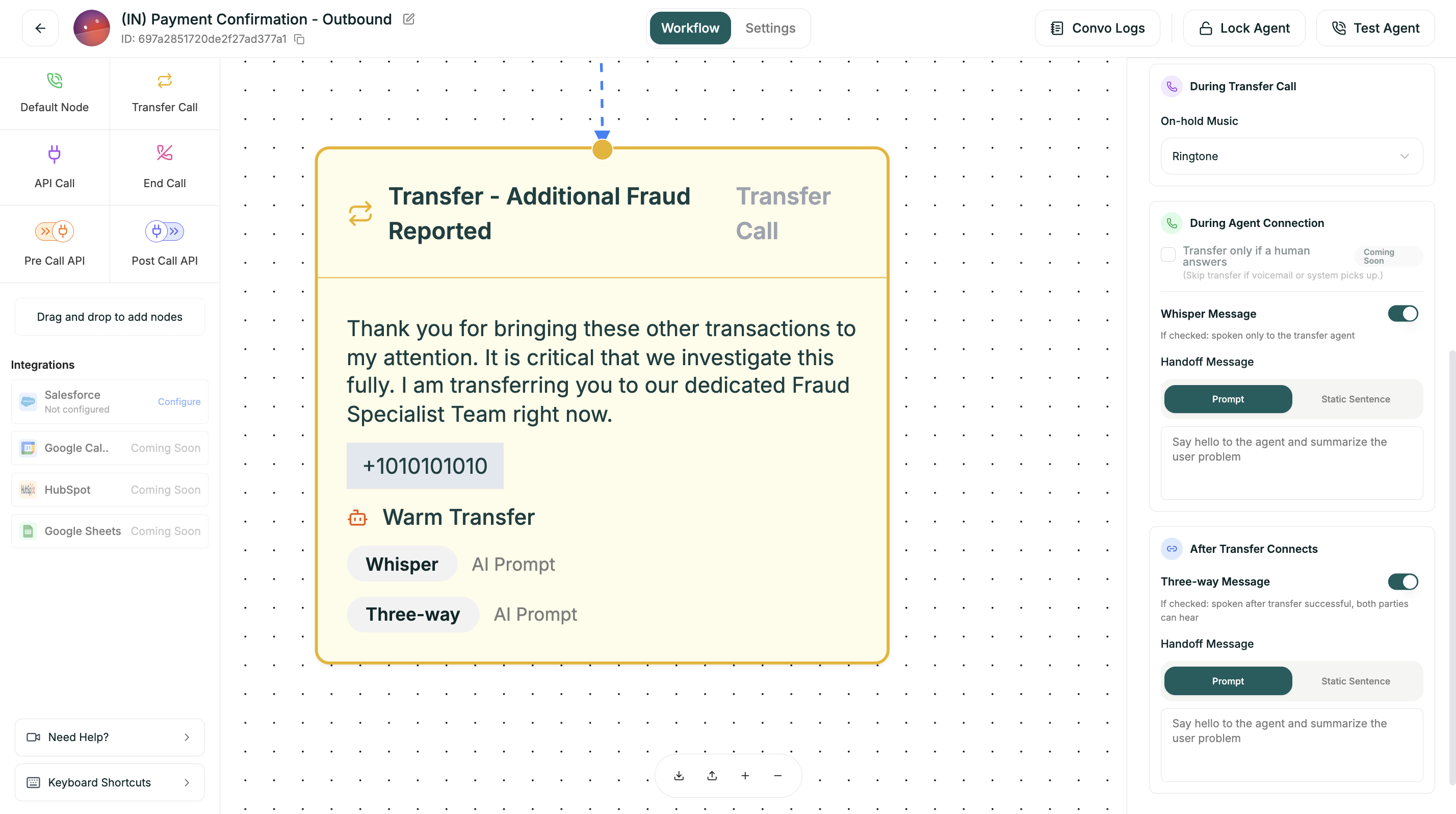

Transfer Call Node

Hand the conversation to a human when needed — for escalations, complex issues, or high-value opportunities.

Configuration

Field	Required	Description
Name	Yes	Identifier (e.g., `transfer_to_sales`)
Description	Yes	When this transfer should trigger
Phone Number	Yes	Transfer destination with country code
Transfer Type	Yes	Cold or Warm

Transfer Types

Cold Transfer

Warm Transfer

Immediate handoff. The caller is connected directly to the destination without any briefing to the receiving agent.

Pros	Cons
Fast	No context for receiving agent
Simple	Caller may repeat themselves

Best for:

Simple escalations
When context isn’t needed
Time-sensitive transfers
High call volume scenarios

End Call Node

Gracefully conclude the conversation when the interaction is complete.

Configuration

Field	Description
Name	Identifier for this ending
Closing Message	Final words before hanging up

Example Closings

Successful

Transferred

Not Qualified

Great! You're all set. Is there anything else I can
help you with today? ... Perfect, thank you for calling
Acme. Have a wonderful day!

Every path must end. Make sure all branches in your flow eventually reach an End Call or Transfer Call node.

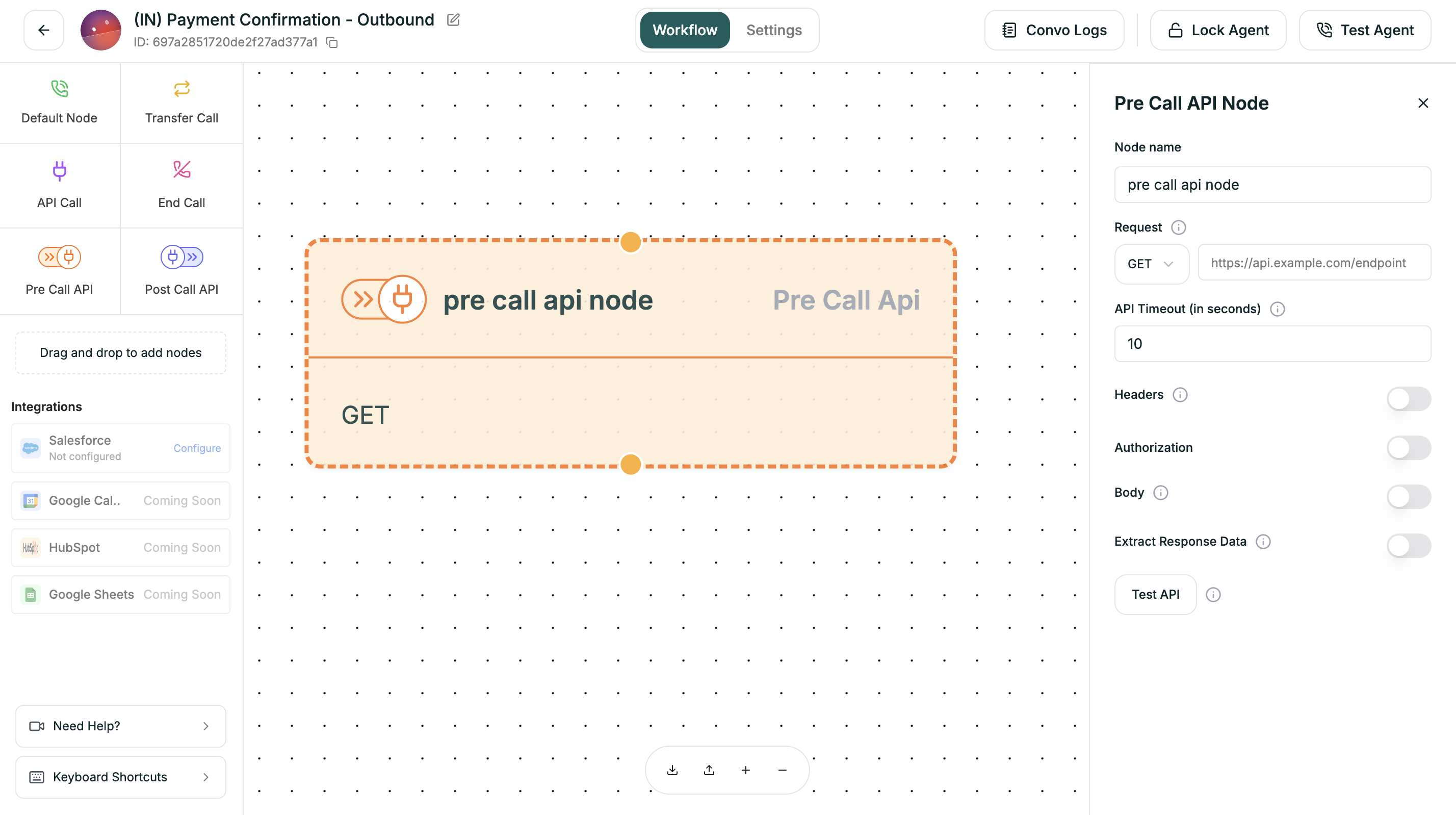

Pre-Call API Node

Execute API calls before your agent says hello. Perfect for loading personalized data that shapes the entire conversation.

When It Runs

The Pre-Call API executes immediately when the call connects, before any conversation:

Phone rings / Call connects
Pre-Call API executes ← Here
Data available in variables
Conversation starts (first Default node)

Configuration

Pre-Call API uses the same configuration as the API Call node:

Request: Method + URL
Headers: Key-value pairs
Body: JSON payload (for POST requests)
Extract Response Data: Variable name + JSONPath

Use Cases

Scenario	What to Fetch
CRM Lookup	Customer history before greeting
Account Status	Check for open issues or alerts
Personalization	Load name, preferences, language
Routing Logic	VIP status, time zone, special handling

Example

GET https://crm.example.com/lookup?phone={{caller_phone}}
Response Mapping:
  $.customer_name → customer_name
  $.last_ticket → last_issue
  $.tier → account_tier

Your greeting node can now say:

"Hi {{customer_name}}! Thanks for calling back.
Are you still having trouble with {{last_issue}}?"

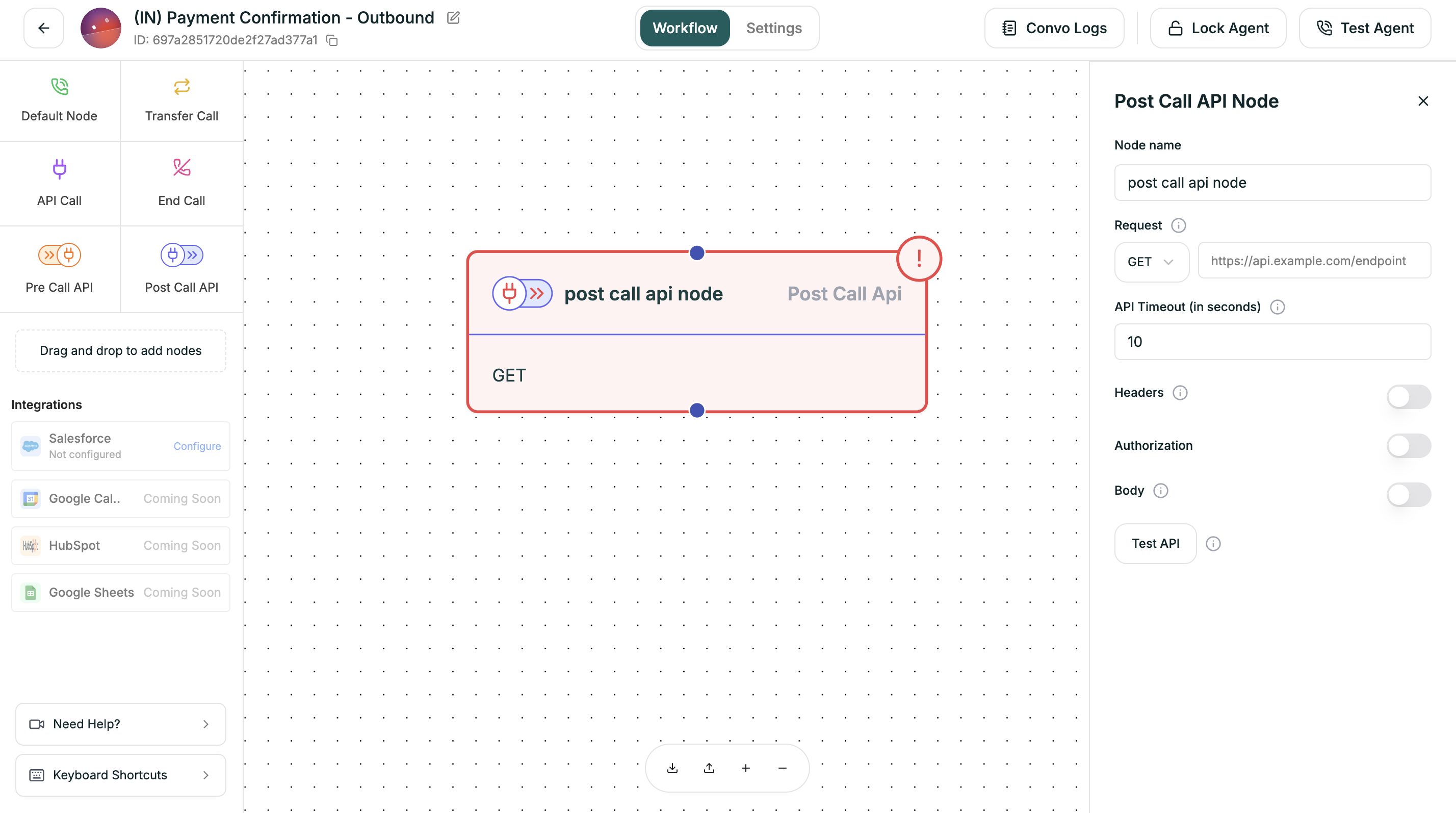

Post-Call API Node

Trigger actions after the call ends. Perfect for logging outcomes, updating CRMs, and triggering follow-ups.

When It Runs

The Post-Call API executes after the conversation ends:

Conversation ends (End Call node reached)
Call terminates
Post-Call API executes ← Here
Data saved externally

Configuration

Post-Call API uses the same configuration as the API Call node:

Request: Method + URL
Headers: Key-value pairs
Body: JSON payload (typically POST)
Extract Response Data: Variable name + JSONPath

Use Cases

Scenario	What to Send
CRM Logging	Call summary, outcome, duration
Ticket Creation	Issue details, priority level
Follow-up Triggers	Send email confirmations, SMS receipts
Analytics	Custom metrics, conversion tracking

Example

POST https://crm.example.com/calls
Body:
{
  "phone": "{{caller_phone}}",
  "duration": "{{call_duration}}",
  "outcome": "{{disposition}}",
  "notes": "{{call_summary}}",
  "agent_id": "{{agent_id}}",
  "collected": {
    "name": "{{collected_name}}",
    "budget": "{{collected_budget}}"
  }
}

Choosing the Right Node

If you need to…	Use
Ask a question or give information	Default Node
Make the bot uninterruptible for a message	Default Node with Uninterruptible ON
Get external data mid-conversation	API Call Node
Transfer to a human	Transfer Call Node
End the conversation	End Call Node
Load data before the call starts	Pre-Call API Node
Save data after the call ends	Post-Call API Node
