Webhooks | Smallest AI Docs

Webhooks notify your systems in real-time during the call lifecycle. Atoms sends an HTTP POST to your URL for each event you subscribe to.

Three events fire per call:

Event	When it fires	Contains
`pre-conversation`	Before the agent speaks	Caller numbers, agent ID, call ID
`post-conversation`	After the call ends	Full transcript, recording URL, call metadata, agent variables
`analytics-completed`	After post-call analytics are computed	Summary, disposition + success metrics, call metadata

All three events share the same callId - use it as the join key when correlating events for the same call.

Managing Webhooks

All webhooks are created and managed from the dashboard.

Location: Left Sidebar → Settings → Webhook

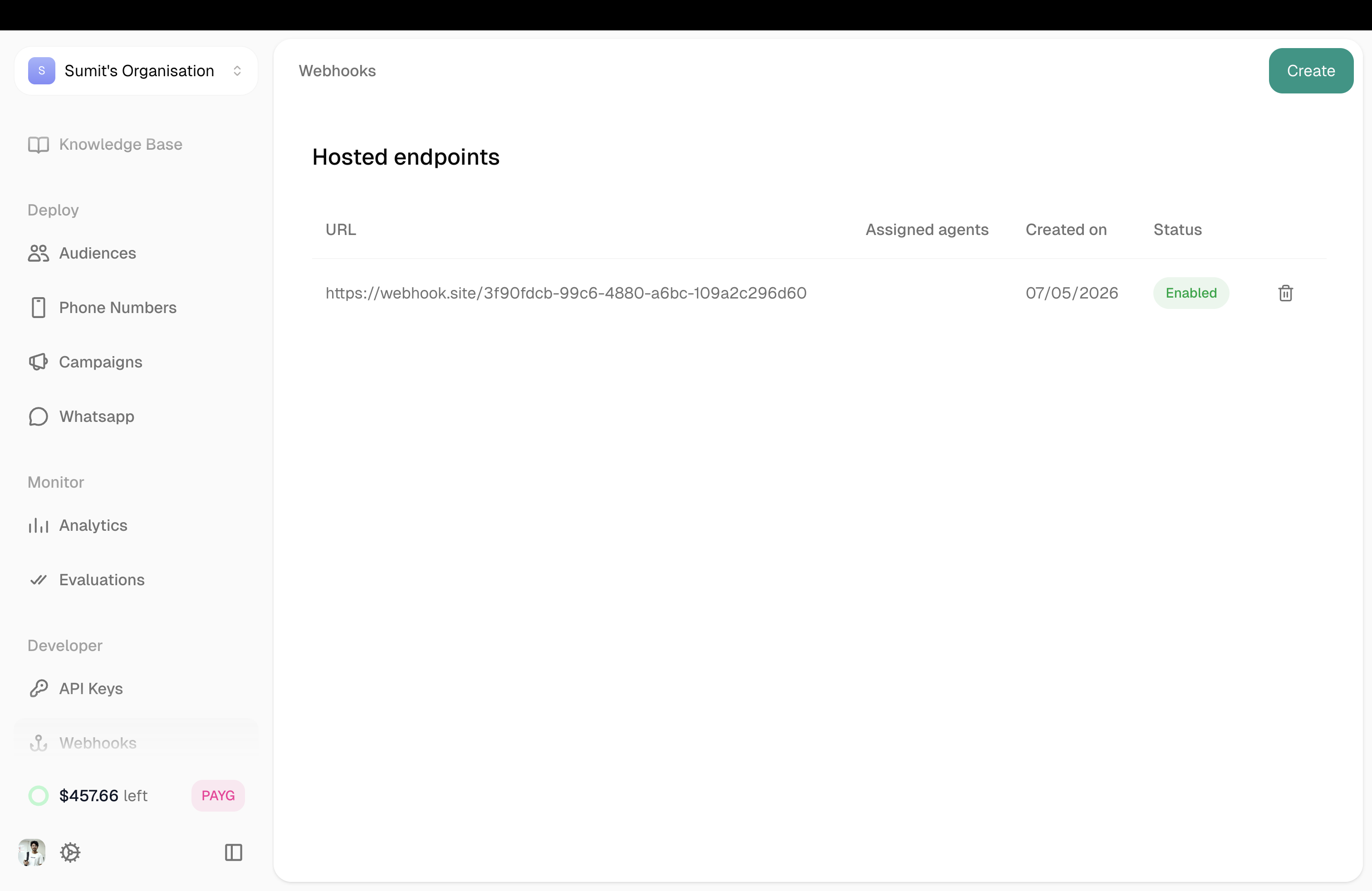

Webhooks dashboard — Webhooks page on dashboard

The table shows all your webhooks with their URL, assigned agents, created date, and status.

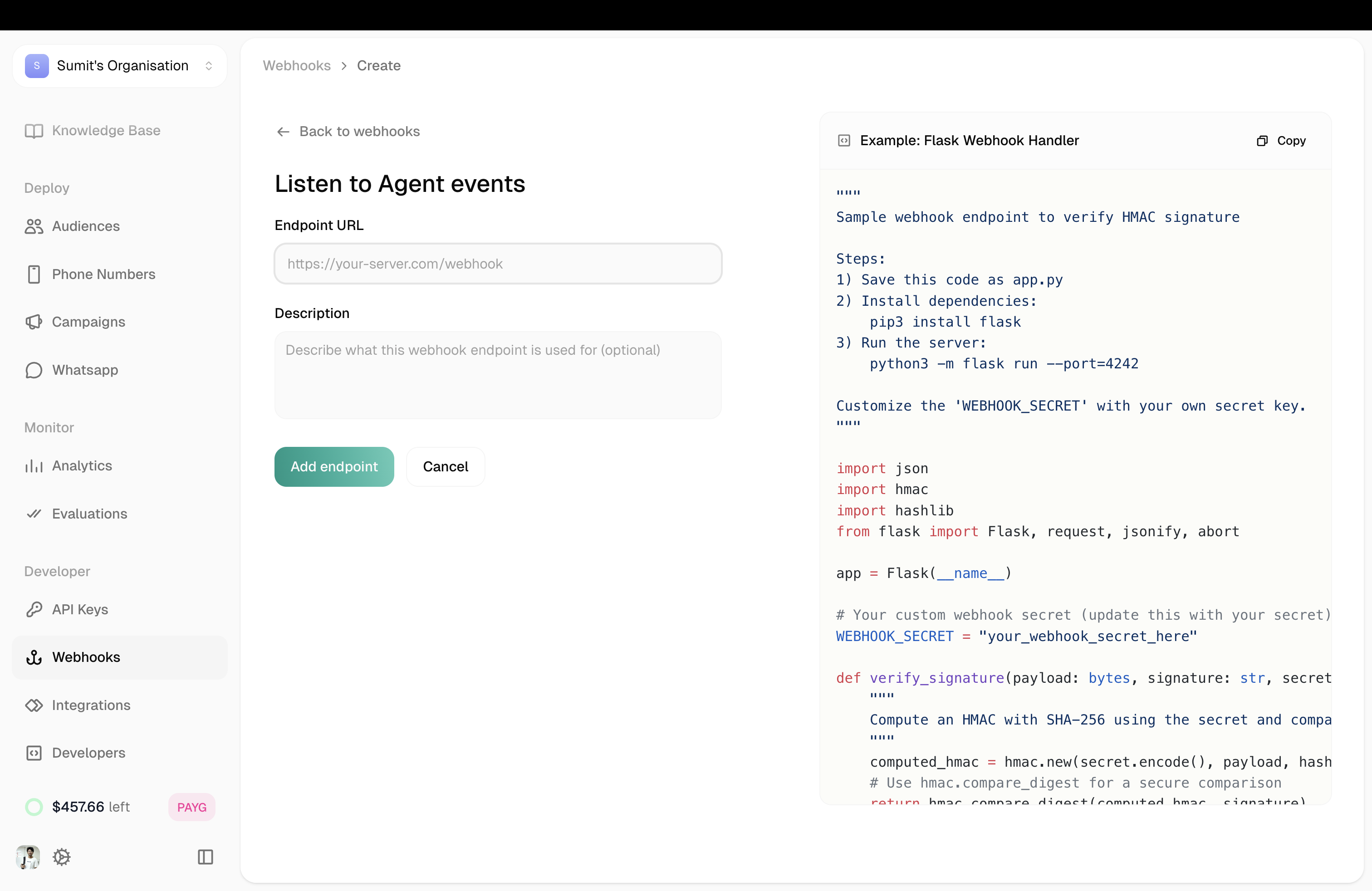

Creating a Webhook

Click Create to add a new webhook endpoint.

Field	Description
Endpoint URL	Your server URL that receives the POST requests
Description	Optional human-readable label (e.g. `"Debt Collection Agent's Endpoint"`) - echoed back in every event body

The right panel shows example Flask code for handling webhooks with HMAC signature verification.

Click Add endpoint to save.

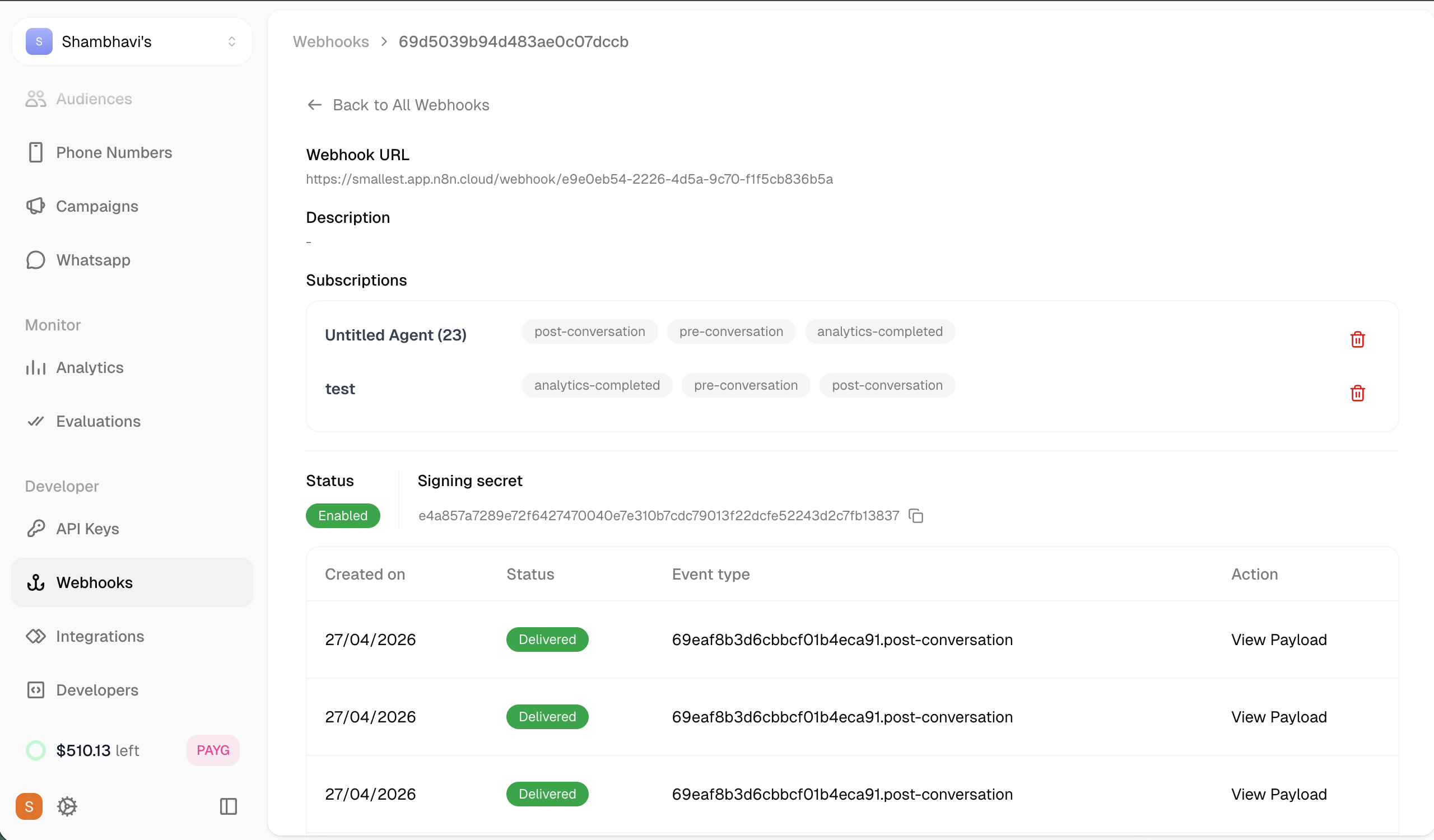

Webhook Details

Click any webhook to see its details and subscriptions.

Field	What it shows
Webhook URL	The endpoint receiving events
Description	Your note
Subscriptions	Which agents are using this webhook and what events
Status	Enabled or disabled
Signing Secret	Per-webhook HMAC key. Use it to verify request authenticity. See Verifying signatures.

Adding to an Agent

Once a webhook exists, connect it to your agent.

Location: Agent Editor → Agent Settings → Webhook tab

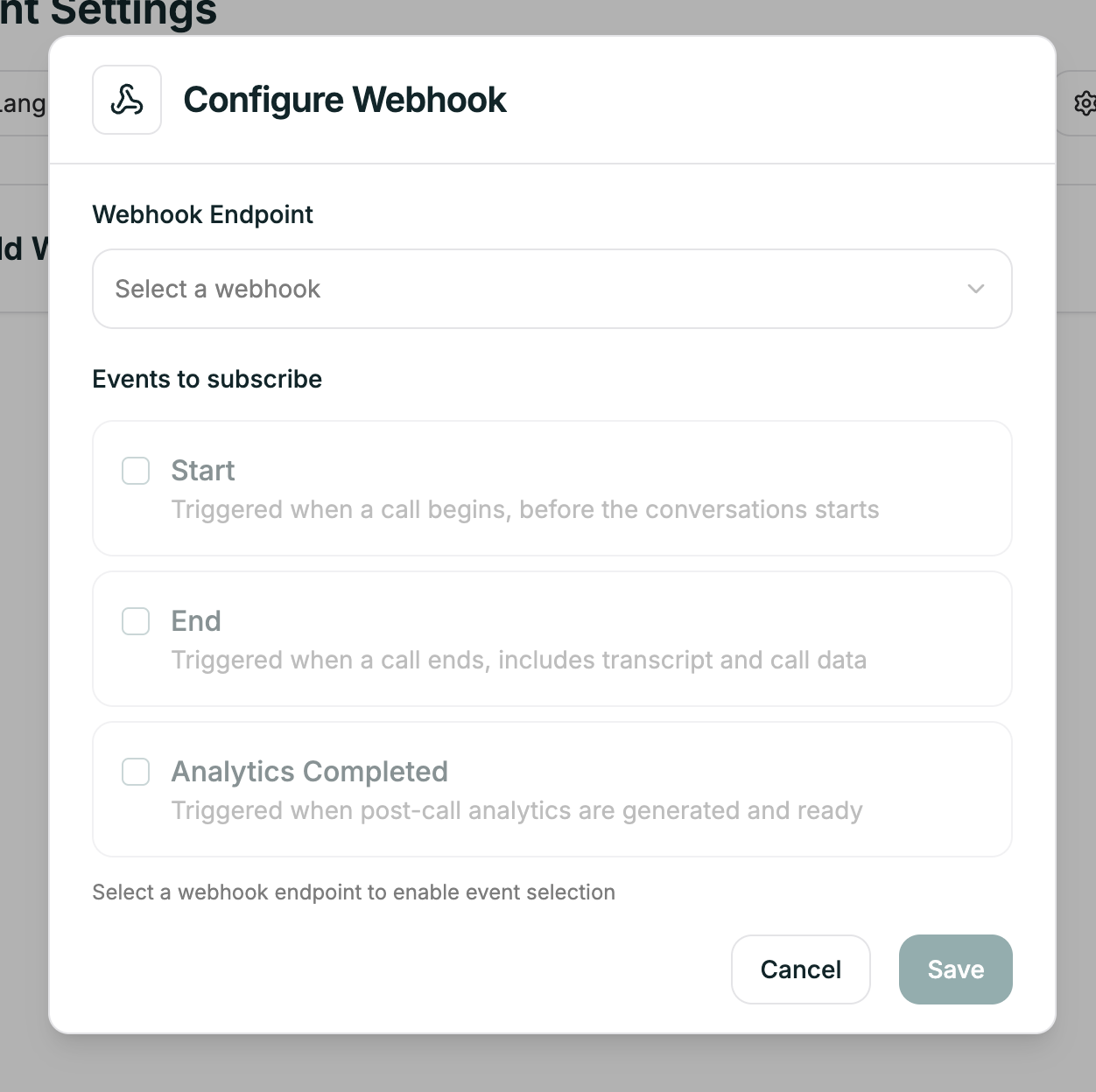

Webhook in agent — Webhook tab in agent settings

Select your webhook from the list, then check which events (pre-conversation, post-conversation, analytics-completed) you want to receive. The agent will now POST to that endpoint for each subscribed event.

Verifying signatures

Every request Atoms sends to your endpoint carries an X-Signature header. Verify it before trusting the body.

Algorithm

HMAC-SHA256, hex-encoded.
Key: the webhook’s signing secret (shown on the webhook detail page, or returned as decryptedSecretKey from GET /webhook in the API Reference).
Message: the raw request body bytes, exactly as delivered. Do not re-serialize.

X-Signature = hex( HMAC_SHA256( signingSecret, raw_request_body ) )

Python (Flask)

1 import hmac, hashlib
2 from flask import Flask, request, abort
3
4 SIGNING_SECRET = "..."  # from the dashboard or GET /webhook
5
6 app = Flask(__name__)
7
8 @app.post("/webhook")
9 def receive():
10     provided = request.headers.get("X-Signature", "")
11     expected = hmac.new(
12         SIGNING_SECRET.encode(),
13         request.get_data(),  # raw bytes, not request.json
14         hashlib.sha256,
15     ).hexdigest()
16     if not hmac.compare_digest(provided, expected):
17         abort(401)
18     # trust request.json now
19     ...
20     return "", 200

Node (Express)

1 import crypto from "node:crypto";
2 import express from "express";
3
4 const app = express();
5 const SIGNING_SECRET = process.env.WEBHOOK_SECRET;
6
7 // Capture raw body so the HMAC matches byte-for-byte.
8 app.use(express.json({ verify: (req, _res, buf) => { req.rawBody = buf; } }));
9
10 app.post("/webhook", (req, res) => {
11   const provided = req.header("X-Signature") ?? "";
12   const expected = crypto
13     .createHmac("sha256", SIGNING_SECRET)
14     .update(req.rawBody)
15     .digest("hex");
16
17   const a = Buffer.from(provided, "hex");
18   const b = Buffer.from(expected, "hex");
19   if (a.length !== b.length || !crypto.timingSafeEqual(a, b)) {
20     return res.status(401).end();
21   }
22   // trust req.body now
23   res.status(200).end();
24 });

Use a constant-time comparison (hmac.compare_digest in Python, crypto.timingSafeEqual in Node) to avoid timing side channels.

Managing webhooks via API

Everything you can do from the dashboard is also available under the Webhooks section of the API Reference. Notable behaviors:

GET /webhook and GET /webhook?webhookId=<id> both return the signing secret in the decryptedSecretKey field, so you can fetch it programmatically without hitting the dashboard.
POST /webhook returns only the new webhook’s ID. Call GET /webhook?webhookId=<id> right after to retrieve the signing secret.
PATCH /webhook/{id} can update endpoint, description, and headers only. Event subscriptions cannot be changed with PATCH; add or remove them via the POST /agent/{agentId}/webhook-subscriptions and DELETE /agent/{agentId}/webhook-subscriptions endpoints, or from the agent editor.

Deleting a webhook

DELETE /webhook/{id} fails with 400 if the webhook is still assigned to any agent:

Cannot delete webhook: It is currently assigned to one or more agents.
Please remove all agent assignments first.

Clean unassign path: call DELETE /agent/{agentId}/webhook-subscriptions for each agent that has the webhook attached, then retry the delete. Removing the webhook from the agent’s Webhook tab in the dashboard does the same thing.

Event envelope

Every webhook event shares the same top-level envelope:

Field	Type	Description
`url`	string	The webhook URL endpoint.
`description`	string	Human-readable label configured on the webhook.
`event`	string	`{agentId}.{eventType}` - e.g. `69fc7dd072a0c1d28d948ace.post-conversation`.
`metadata`	object	Event-specific payload. See per-event sections below.
`id`	string	Unique webhook delivery ID (separate from `callId`).

Common `metadata` fields (present in all events)

Field	Type	Description
`metadata.agentId`	string	The Atoms agent ID that handled the call.
`metadata.eventType`	string	One of `pre-conversation`, `post-conversation`, `analytics-completed`.
`metadata.conversationType`	string	Channel type. Known values: `telephonyOutbound`, `telephonyInbound`.
`metadata.callId`	string	Unique call identifier (e.g. `CALL-1778226705739-7e4c17`).

1. `pre-conversation`

Fired before the agent begins speaking. Use this to enrich CRM data, log call attempts, or gate outbound calls.

`metadata` fields

Field	Type	Description
`agentId`	string	Agent ID.
`eventType`	string	`"pre-conversation"`
`conversationType`	string	e.g. `"telephonyOutbound"`
`toPhone`	string	Destination phone number in E.164 format.
`fromPhone`	string	Originating phone number in E.164 format.
`callId`	string	Unique call ID.

Example body

1 {
2   "url": "https://example.com/webhook",
3   "description": "Debt Collection Agent's Endpoint",
4   "event": "69fc7dd072a0c1d28d948ace.pre-conversation",
5   "metadata": {
6     "agentId": "69fc7dd072a0c1d28d948ace",
7     "eventType": "pre-conversation",
8     "conversationType": "telephonyOutbound",
9     "toPhone": "+916296641821",
10     "fromPhone": "+918035317096",
11     "callId": "CALL-1778226705739-7e4c17"
12   },
13   "id": "69fd96118fd277fc807e4c23"
14 }

pre-conversation does not contain callData, transcript, variables, analytics, or recordingUrl.

2. `post-conversation`

Fired after the call ends. Contains the full transcript, call metadata, recording URL, and all agent variables that were in scope during the conversation.

`metadata` fields

Field	Type	Description
`agentId`	string	Agent ID.
`eventType`	string	`"post-conversation"`
`conversationType`	string	e.g. `"telephonyOutbound"`
`callId`	string	Unique call ID.
`recordingUrl`	string	URL to the composite call recording (`.wav`).
`callData`	object	Call-level metadata - see table below.
`transcript`	array	Ordered list of transcript turns - see table below.
`variables`	object	Key-value map of all agent variables injected into the call.

`metadata.callData`

Field	Type	Description
`fromNumber`	string	Originating phone number (E.164).
`toNumber`	string	Destination phone number (E.164).
`callDuration`	number	Total call duration in seconds (float).
`callStatus`	string	Terminal status. Known values: `completed`, `no-answer`, `busy`, `failed`, `canceled`.
`callDirection`	string	`"telephony_outbound"` or `"telephony_inbound"`.
`answerTime`	string	ISO 8601 timestamp when the call was answered (UTC).
`endTime`	string	ISO 8601 timestamp when the call ended (UTC).

`metadata.transcript[]` (array of objects)

Each element represents one speaking turn.

Field	Type	Description
`role`	string	`"agent"` or `"user"`.
`content`	string	The spoken text for this turn.
`timestamp`	string	ISO 8601 timestamp of when this turn began (UTC).

`metadata.variables`

A flat key-value object. The platform always injects a fixed set of standard keys. Any additional keys come from the agent’s own configuration (Agent Settings → Variables) or from prompt-declared placeholders.

Standard variables the platform always sets

Key	Description
`call_id`	Same as `metadata.callId`.
`user_number`	Caller’s phone number (E.164). Same as `callData.fromNumber` for inbound.
`agent_number`	Number the agent answered on (E.164). Same as `callData.toNumber` for inbound.
`conversation_type`	`telephonyInbound` or `telephonyOutbound`.
`agent_gender`	From the agent’s voice configuration.
`default_language`	The agent’s default language code (e.g. `en`, `hi`).
`supported_languages`	Comma-separated list of language codes the agent is configured to accept.
`current_date`, `current_time`, `current_day`	Rendered at call start in the agent’s `timezone`. Available as `{{current_date}}` etc. in prompts.
`timezone`	The agent’s configured timezone (e.g. `Asia/Kolkata`).

Custom keys (e.g. agent_name, customer_name, due_amount) sit alongside these.

The variables object is otherwise fully dynamic. New custom keys can appear at any time depending on the agent’s prompt or the payload passed to the outbound call API. Your code should handle unknown keys gracefully. Store them in a generic JSON column rather than mapping each to a fixed column.

Example body

1 {
2   "url": "https://example.com/webhook",
3   "description": "Debt Collection Agent's Endpoint",
4   "event": "69fc7dd072a0c1d28d948ace.post-conversation",
5   "metadata": {
6     "agentId": "69fc7dd072a0c1d28d948ace",
7     "eventType": "post-conversation",
8     "conversationType": "telephonyOutbound",
9     "callId": "CALL-1778226705739-7e4c17",
10     "recordingUrl": "https://db2izkvf1oocn.cloudfront.net/call-recordings/CALL-.../composite.wav",
11     "callData": {
12       "answerTime": "2026-05-08T07:51:58.813Z",
13       "callDirection": "telephony_outbound",
14       "callDuration": 49.350622,
15       "callStatus": "completed",
16       "endTime": "2026-05-08T07:52:48.164Z",
17       "fromNumber": "+918035317096",
18       "toNumber": "+916296641821"
19     },
20     "transcript": [
21       { "role": "agent", "content": "नमस्ते, मैं Nisha बोल रही हूँ…", "timestamp": "2026-05-08T07:52:05.123Z" },
22       { "role": "user", "content": "हाँ बोलिए", "timestamp": "2026-05-08T07:52:07.369Z" }
23     ],
24     "variables": {
25       "call_id": "CALL-1778226705739-7e4c17",
26       "user_number": "+916296641821",
27       "agent_number": "+918035317096",
28       "conversation_type": "telephonyOutbound",
29       "agent_gender": "female",
30       "default_language": "hi",
31       "supported_languages": "hi,en",
32       "current_date": "2026-05-08",
33       "current_day": "Friday",
34       "current_time": "13:21",
35       "timezone": "Asia/Kolkata",
36       "agent_name": "Nisha",
37       "customer_name": "Rahul Sharma",
38       "due_amount": "29000"
39     }
40   },
41   "id": "69fd96578d7c3809f58ce555"
42 }

3. `analytics-completed`

Fired after Atoms finishes running the configured disposition and success metrics on the transcript. Arrives some time after post-conversation.

`metadata` fields

Field	Type	Description
`agentId`	string	Agent ID.
`eventType`	string	`"analytics-completed"`
`conversationType`	string	e.g. `"telephonyOutbound"`
`callId`	string	Unique call ID.
`analytics`	object	Contains `summary`, `dispositionMetrics`, and `successMetrics`.
`callData`	object	Same structure as `post-conversation.callData` - but the `callDirection` field may be absent.

`metadata.analytics`

Field	Type	Description
`summary`	string	LLM-generated plain-text summary of the call.
`dispositionMetrics`	array	Array of metric objects - see schema below.
`successMetrics`	array	Array of metric objects (same schema as disposition metrics). May be empty `[]`.

`analytics.dispositionMetrics[]` and `analytics.successMetrics[]`

Each metric is a self-describing object. The set of metrics is configured per-agent and can vary.

Field	Type	Description
`identifier`	string	Machine-readable metric name (e.g. `turn_taking_balance`, `escalation_needed`).
`value`	integer / string / boolean	The evaluated result. Type depends on `dispositionMetricType`.
`confidence`	number	Confidence score (0–1).
`reasoning`	string	LLM-generated explanation for the assigned value.
`dispositionMetricPrompt`	string	The prompt/question that was used to evaluate this metric.
`dispositionMetricType`	string	Data type of `value`. One of: `INTEGER`, `STRING`, `BOOLEAN`.

Example body

1 {
2   "url": "https://example.com/webhook",
3   "description": "Debt Collection Agent's Endpoint",
4   "event": "69fc7dd072a0c1d28d948ace.analytics-completed",
5   "metadata": {
6     "agentId": "69fc7dd072a0c1d28d948ace",
7     "eventType": "analytics-completed",
8     "conversationType": "telephonyOutbound",
9     "callId": "CALL-1778226705739-7e4c17",
10     "analytics": {
11       "summary": "The call involved the agent discussing an overdue EMI payment…",
12       "dispositionMetrics": [
13         {
14           "identifier": "turn_taking_balance",
15           "value": 2,
16           "confidence": 1,
17           "reasoning": "The user had 4 speaking turns while the agent had 5…",
18           "dispositionMetricPrompt": "Measure the balance of speaking turns…",
19           "dispositionMetricType": "INTEGER"
20         },
21         {
22           "identifier": "escalation_needed",
23           "value": false,
24           "confidence": 1,
25           "reasoning": "The call did not present complex issues…",
26           "dispositionMetricPrompt": "Based on the interaction, did this call require escalation?",
27           "dispositionMetricType": "BOOLEAN"
28         }
29       ],
30       "successMetrics": []
31     },
32     "callData": {
33       "fromNumber": "+918035317096",
34       "toNumber": "+916296641821",
35       "callDuration": 49.350622,
36       "callStatus": "completed",
37       "answerTime": "2026-05-08T07:51:58.813Z",
38       "endTime": "2026-05-08T07:52:48.164Z"
39     }
40   },
41   "id": "69fd96632b717269846aa433"
42 }

Event lifecycle and ordering

Call initiated
      │
      ▼
┌─────────────────┐
│ pre-conversation│  ← Fired before agent speaks
└────────┬────────┘
         │
   Call in progress…
         │
         ▼
┌──────────────────┐
│ post-conversation│  ← Fired after call ends (has transcript + recording)
└────────┬─────────┘
         │
   Analytics processing…
         │
         ▼
┌─────────────────────┐
│ analytics-completed │  ← Fired after metrics are computed
└─────────────────────┘

All three events share the same callId - use it as the join key.

Integration notes

variables is dynamic - never hard-code column mappings. Store as JSON or iterate keys.
dispositionMetrics / successMetrics are agent-configured - the set of identifiers and their types will differ across agents.
pre-conversation uses toPhone / fromPhone while post-conversation and analytics-completed use toNumber / fromNumber - normalize these in your ingestion layer.
Timestamps are always UTC ISO 8601 strings.
callDuration is a float representing seconds (not milliseconds).
recordingUrl only appears in post-conversation.
transcript only appears in post-conversation.
analytics (summary + metrics) only appears in analytics-completed.

FAQ

What's the delivery timeout?

30 seconds per request. If your endpoint hasn’t returned a response in that window, Atoms marks the delivery as failed.

Does Atoms retry failed deliveries?

No. A non-2xx response or a network-level failure (timeout, DNS, TLS, connection refused) is logged as FAILED and the event moves on. Handle retries on your side: acknowledge fast with a 2xx, then process asynchronously; if your endpoint is down, drain from your own persistent queue once you recover.

What IPs does Atoms send from?

No fixed egress IP is published. Use the X-Signature header for authenticity; don’t rely on IP allow-lists.

Can one webhook fan out to multiple agents?

Yes. Assign the same webhook to several agents in the agent editor. The metadata.agentId field on every event tells you which agent produced it.

Is event ordering guaranteed?

Within a single call, the three events fire in this sequence: pre-conversation → post-conversation → analytics-completed. Deliveries themselves are best-effort; treat metadata.callId as the join key and reconcile on your side rather than assuming exact arrival order across concurrent calls.

How do I test webhooks locally?

Run a receiver on localhost and expose it with a tunnel (ngrok, cloudflared, etc.). Register the tunnel URL as the webhook endpoint from the dashboard, then place a test call. Live payloads land on your local process.

How do I fetch the signing secret programmatically?

Call GET /webhook?webhookId=<id> (or GET /webhook to get all). The response includes a decryptedSecretKey field with the plaintext HMAC key.

Can I change which events a webhook subscribes to?

Not through PATCH /webhook/{id} (it only updates endpoint, description, headers). Add or remove event subscriptions via the POST /agent/{agentId}/webhook-subscriptions and DELETE /agent/{agentId}/webhook-subscriptions endpoints, or from the agent editor.

Why do I get 400 when deleting a webhook?

The webhook is still assigned to at least one agent. Remove the assignment (either from the agent’s Webhook tab or via DELETE /agent/{agentId}/webhook-subscriptions), then retry DELETE /webhook/{id}.

Are variable keys stable?

The 11 platform-set standard keys (call_id, user_number, agent_number, conversation_type, agent_gender, default_language, supported_languages, current_date, current_time, current_day, timezone) are stable. Any additional keys come from the agent’s own config and can change whenever the prompt or outbound-call payload changes, so store variables as JSON on your side.

Integrations

Connect Salesforce, Zendesk, and more

Agent Config

Make API requests during conversations

Managing Webhooks

Creating a Webhook

Webhook Details

Adding to an Agent

Verifying signatures

Managing webhooks via API

Deleting a webhook

Event envelope

Common metadata fields (present in all events)

1. pre-conversation

metadata fields

Example body

2. post-conversation

metadata fields

metadata.callData

metadata.transcript[] (array of objects)

metadata.variables

Example body

3. analytics-completed

metadata fields

metadata.analytics

analytics.dispositionMetrics[] and analytics.successMetrics[]

Example body

Event lifecycle and ordering

Integration notes

FAQ

What's the delivery timeout?

Does Atoms retry failed deliveries?

What IPs does Atoms send from?

Can one webhook fan out to multiple agents?

Is event ordering guaranteed?

How do I test webhooks locally?

How do I fetch the signing secret programmatically?

Can I change which events a webhook subscribes to?

Why do I get 400 when deleting a webhook?

Are variable keys stable?

Related

Common `metadata` fields (present in all events)

1. `pre-conversation`

`metadata` fields

2. `post-conversation`

`metadata` fields

`metadata.callData`

`metadata.transcript[]` (array of objects)

`metadata.variables`

3. `analytics-completed`

`metadata` fields

`metadata.analytics`

`analytics.dispositionMetrics[]` and `analytics.successMetrics[]`
